500280376 - BRUSHED MOTOR - 36 to 72 VDC - 127 to 200 oz-in CONT TORQUE - S28-E-400FX

500280376 - BRUSHED MOTOR - 36 to 72 VDC - 127 to 200 oz-in CONT TORQUE - S28-E-400FX

Regular price $601.00
Regular price Sale price $601.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

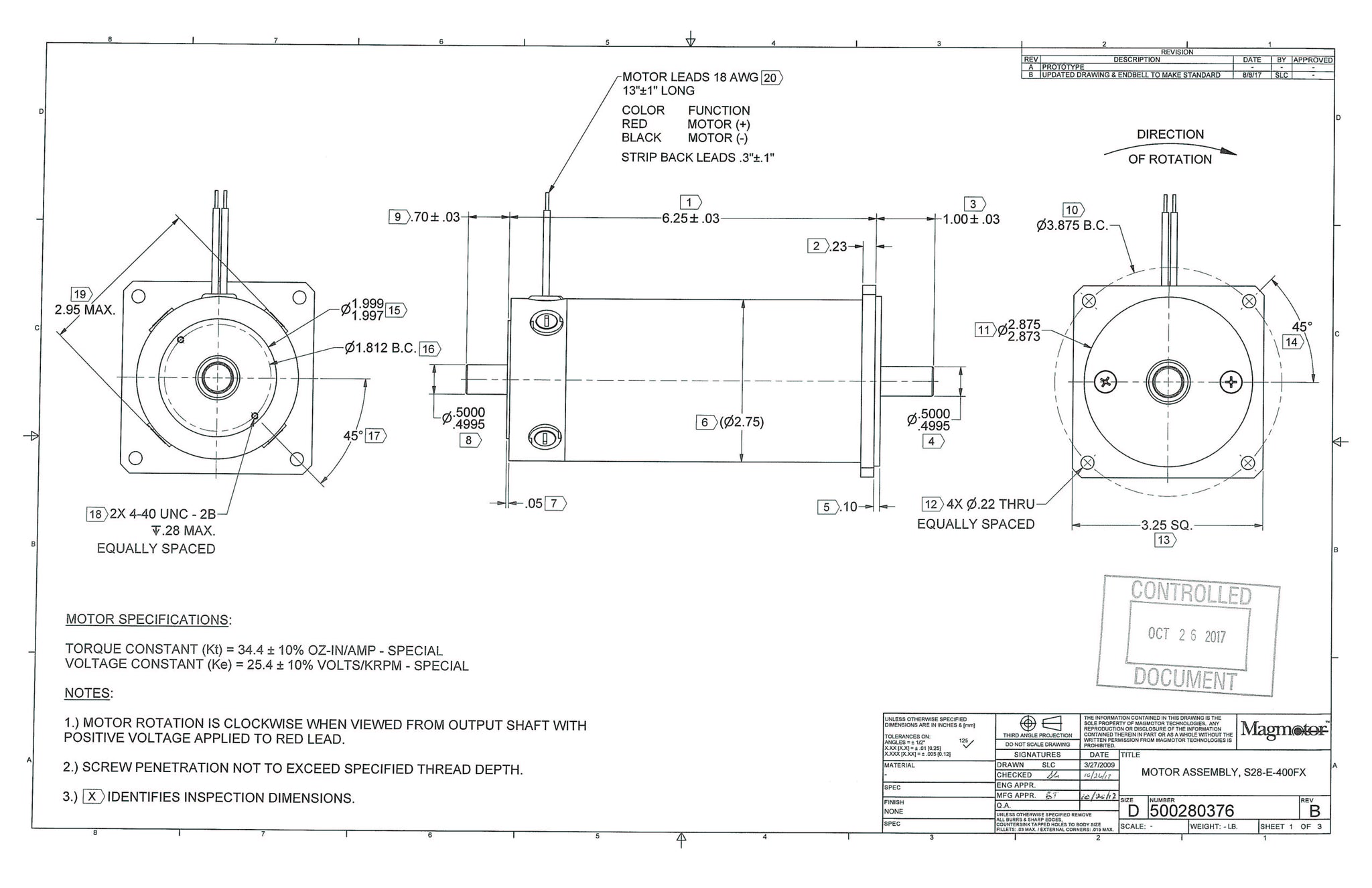

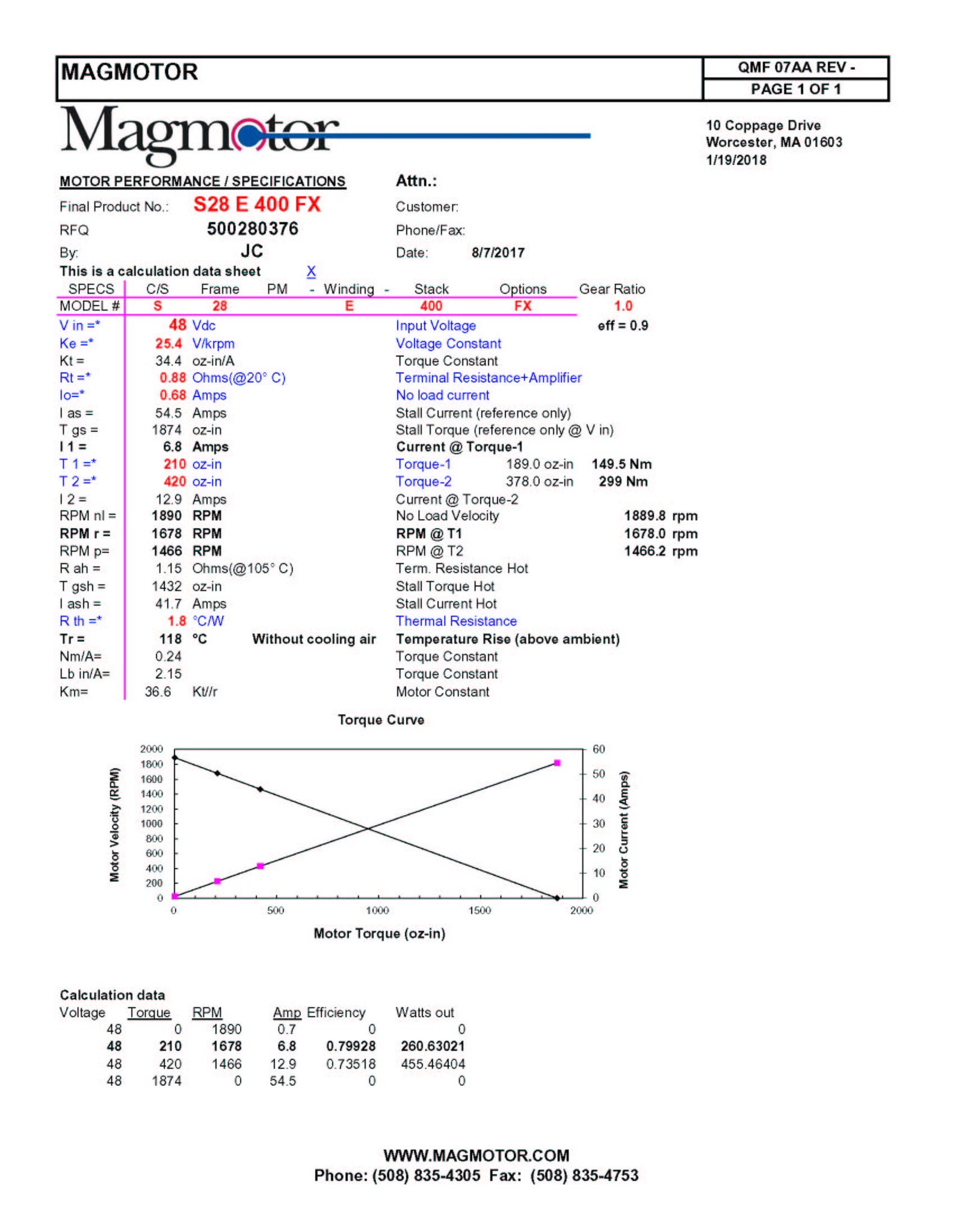

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button



DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 25.4 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 34.4 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1225 rpm @ 36VDC with a continuous torque of 200 oz-in
  • Capable of operating at 1710 rpm @ 48VDC with a continuous torque of 180 oz-in
  • Capable of operating at 2210 rpm @ 60VDC with a continuous torque of 155 oz-in
  • Capable of operating at 2700 rpm @ 72VDC with a continuous torque of 127 oz-in
