500280453 - BRUSHED MOTOR - 12 to 24 VDC - 90 to 175 oz-in CONT TORQUE - S28-E4-300FX

500280453 - BRUSHED MOTOR - 12 to 24 VDC - 90 to 175 oz-in CONT TORQUE - S28-E4-300FX

Regular price $534.00
Regular price Sale price $534.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

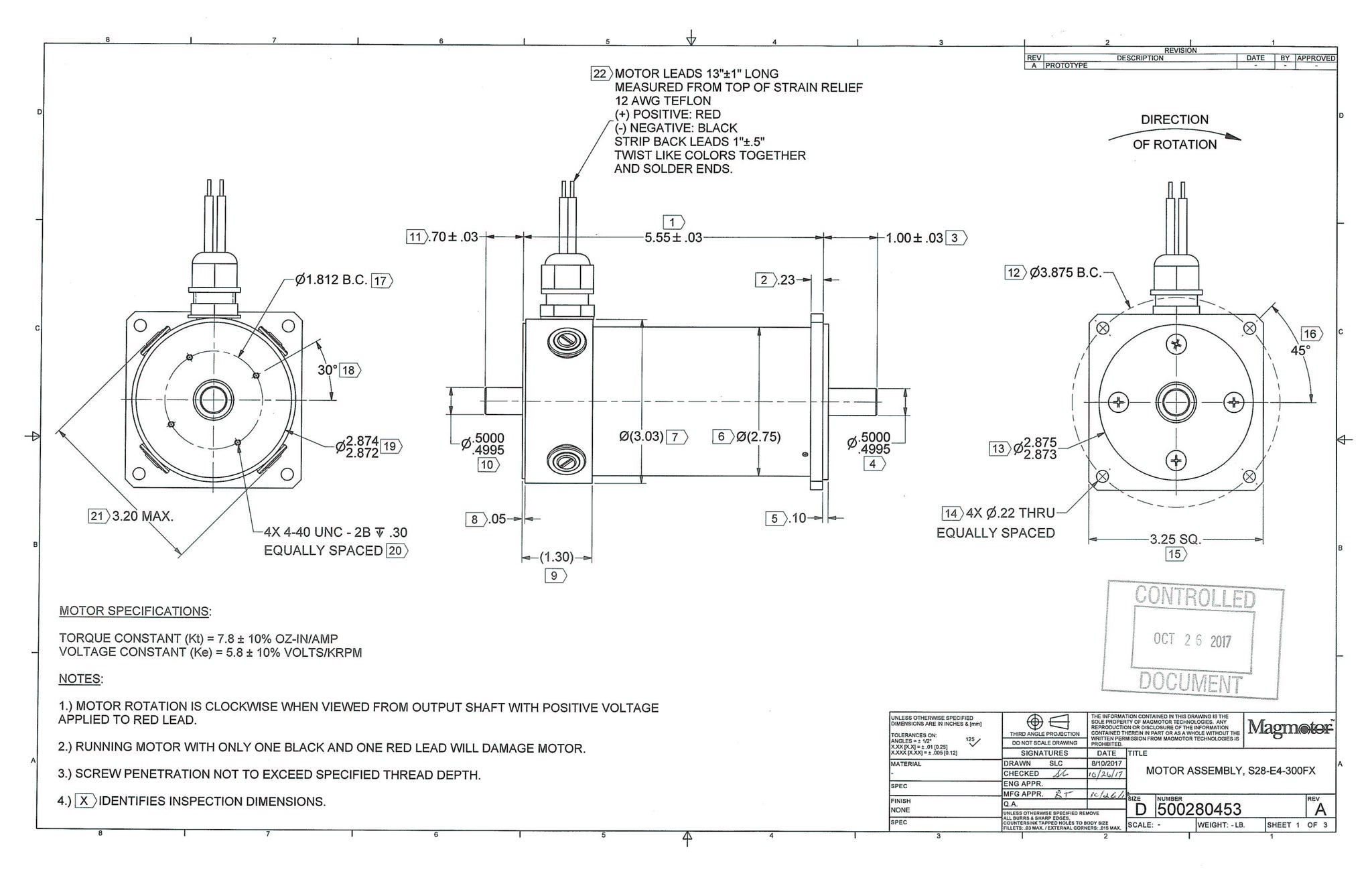

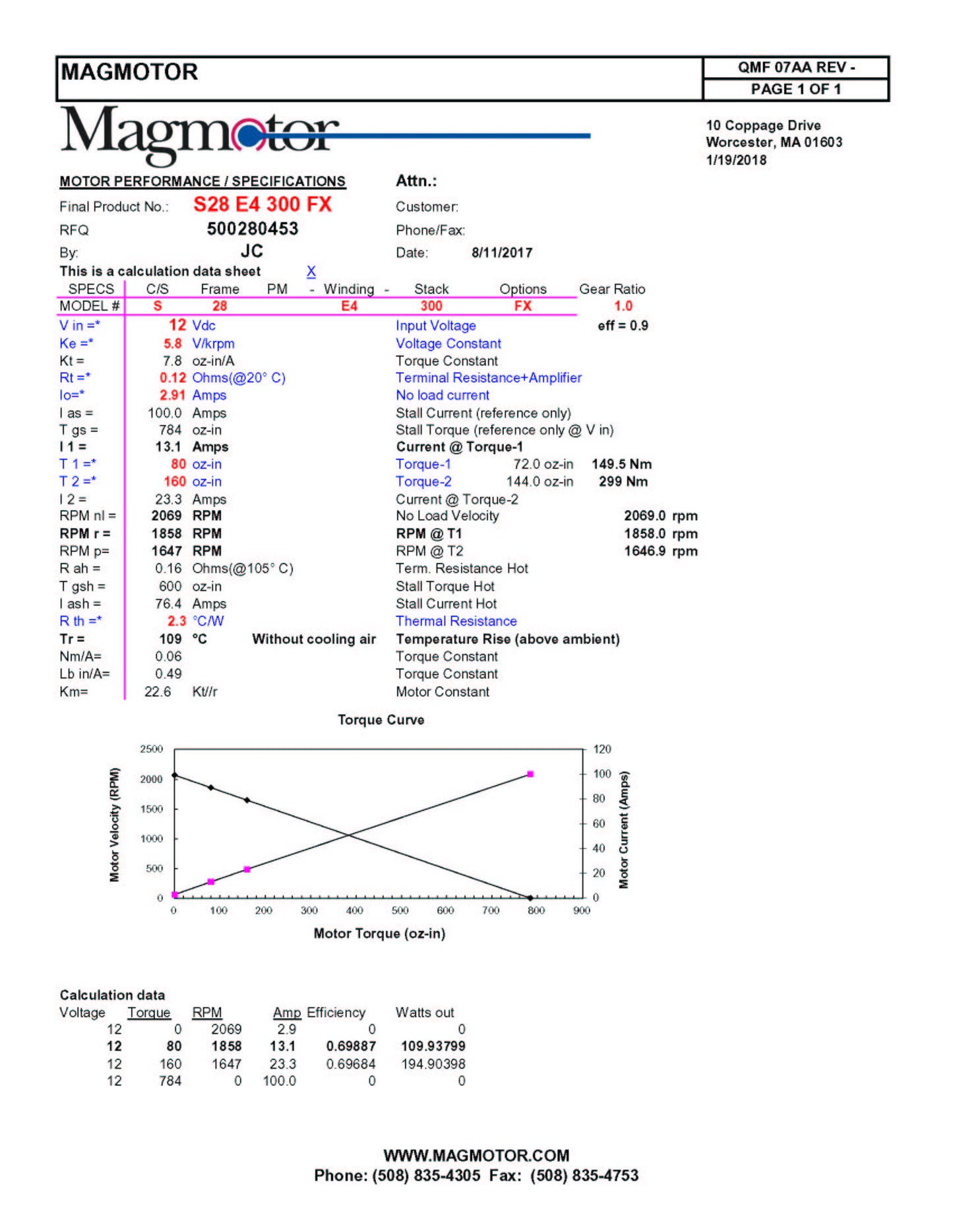

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button



DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 5.8 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 7.8 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1950 rpm @ 12VDC with a continuous torque of 172 oz-in
  • Capable of operating at 3037 rpm @ 18VDC with a continuous torque of 133 oz-in
  • Capable of operating at 4130 rpm @ 24VDC with a continuous torque of 90 oz-in
