500280454 - BRUSHED MOTOR - 24 to 36 VDC - 62 to 80 oz-in CONT TORQUE - S28-F2-300FX

500280454 - BRUSHED MOTOR - 24 to 36 VDC - 62 to 80 oz-in CONT TORQUE - S28-F2-300FX

Regular price $534.00
Regular price Sale price $534.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

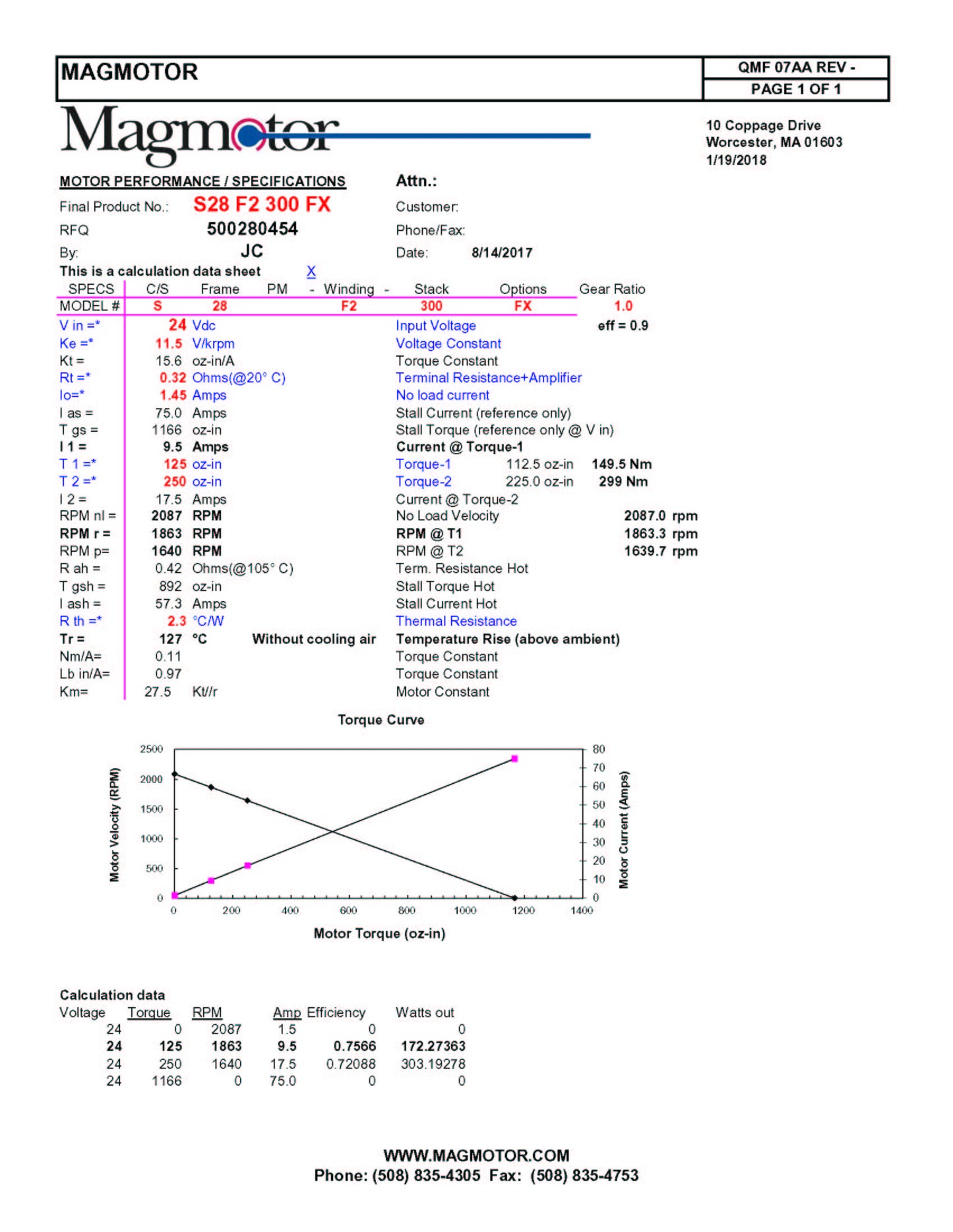

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button


DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 11.5 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 15.6 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1985 rpm @ 24V with a continuous torque of 80 oz-in
  • Capable of operating at 2520 rpm @ 30V with a continuous torque of 70 oz-in
  • Capable of operating at 3050 rpm @ 36V with a continuous torque of 62 oz-in
