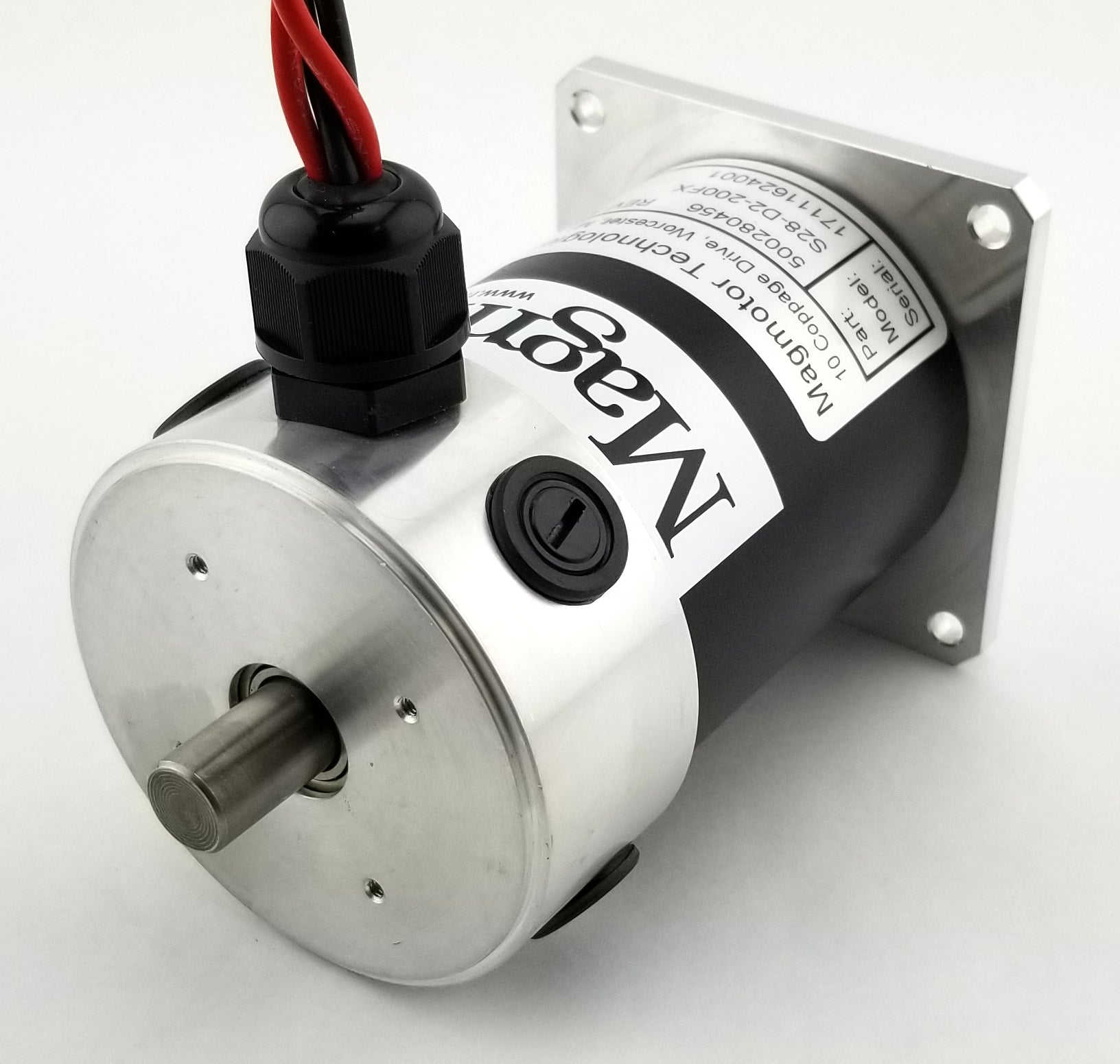

500280456 - BRUSHED MOTOR - 12 to 24 VDC - 25 to 75 oz-in CONT TORQUE - S28-D2-200FX

500280456 - BRUSHED MOTOR - 12 to 24 VDC - 25 to 75 oz-in CONT TORQUE - S28-D2-200FX

Regular price $473.00
Regular price Sale price $473.00
Sale Sold out
Shipping calculated at checkout.

DOWNLOADS:

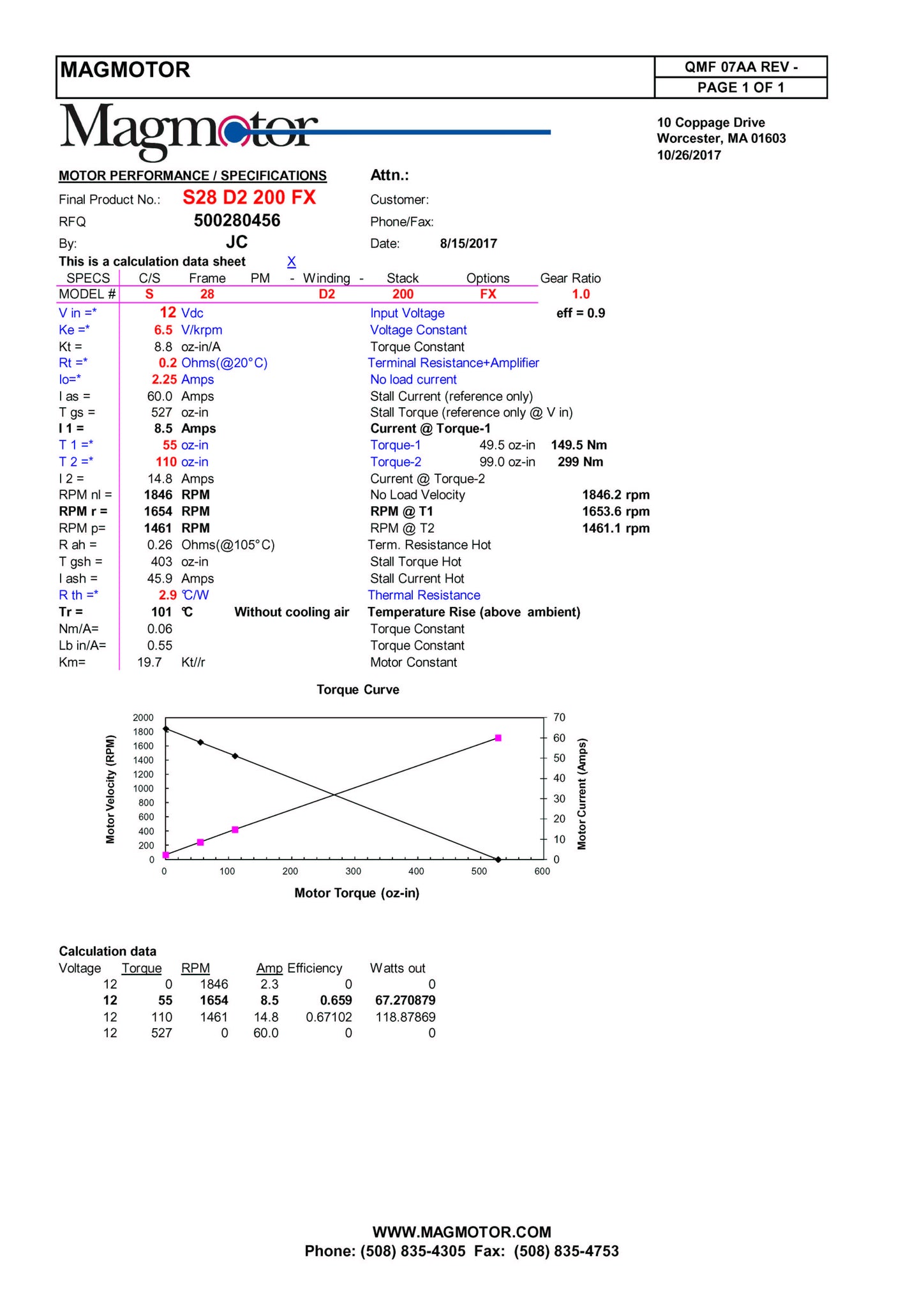

magmotor servo motor drawing with performance sheet PDF download button    magmotor servo motor CAD 3D model STEP file download button



DC Motor Specifications:

  • 4 Pole - Brushed DC Motor
  • NEMA 34 Mounting
  • Encoder Ready
  • Voltage Constant (Ke) = 24.0 +/- 10% VOLTS/KRPM
  • Torque Constant (Kt) = 32.5 +/- 10% OZ-IN/AMP
  • REACH, RoHS and CE Compliant

Example Performance Ranges:

  • Capable of operating at 1280 rpm @ 36VDC with a continuous torque of 169 oz-in
  • Capable of operating at 1785 rpm @ 48VDC with a continuous torque of 152 oz-in
  • Capable of operating at 2290 rpm @ 60VDC with a continuous torque of 133 oz-in
  • Capable of operating at 2800 rpm @ 72VDC with a continuous torque of 111 oz-in
